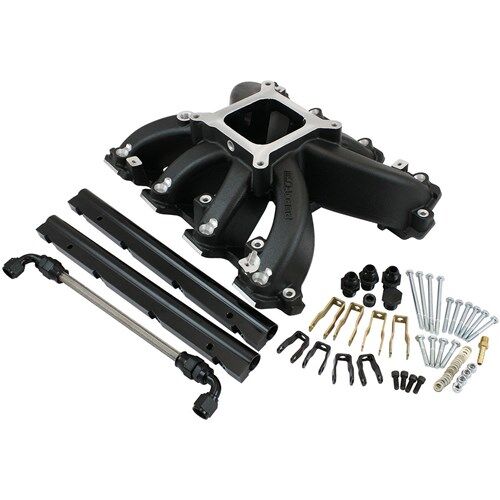

Convert your GM LS engine to allow a 4150 style throttle body to sit on top of your engine for retrofit applications with this Aeroflow Performance Hi Rise Race cast intake manifold. This single-plane intake manifold is designed to keep your air and fuel distribution going into the engine at a steady and even flow for maximum performance and efficiency. The carburettor-mounting pad is designed to accept aftermarket 4150 square-bore throttle bodies or adapter plates for turbocharged applications. Specifically designed to suit GM LS Gen III and IV engines equipped with OE or aftermarket LS1/LS2 rectangle port cylinder heads.



• Fits GM LS3 Rectangle Port Engines.

• EFI Applications.

• This is designed for GM LS Engines with EFI only. Use AF6240-6005 for NON-EFI applications.

• This intake manifold does not work with factory OEM fuel rails and requires the use of Aeroflow Fuel Rail Kit included (AF6999-5000).

• Requires the use of 14mm short (33.60mm) fuel injectors (Sold Separately).

• Fits GM LS3 Engines.

• Single Plane Configuration.

• High Rise Intake Manifold.

• RPM operating range - 2500 to 7000.

• Black Finish.

•- Intake manifold Flat style gasket (must use Fel Pro 1312-2 or 1312-3).

Specifications

Manifold Specifications

- Square bore carburettor pad (4150 Flange)
- Overall height (Carb pad to bottom of manifold) is 172mm (Ensure to Check Bonnet Clearance)
- Port Size: 1.08" x 2.45"
- Intake manifold Flat style gasket (must use Fel Pro 1222-2 or 1222-3).
- 5/16-18" carburettor studs (x4)
- 4 x M6 x 1.00mm Mounting Holes for fuel rails.

Intake Manifold Includes
- 10 x M6 x 1.00mm Hex Screws (50mm UHL)
- 10 x M6 Flat Washers

Fuel Rail Kit includes
- 2 x Two Fuel Rails (-8ORB)
- 1 x -8AN cross over 100 series braided line and two 90 degree non full flow taper fittings
- 3 x -8an to -8ORB fittings
- 1 x -8ORB hex port plug
- 4 x mounting brackets
- 6 xM6 x 1.00mm socket cap screws (25mm UHL)
- 6 x M6 x 1.00mm hex screws (12mm UHL)
- 4 x M6 nuts

Important Information

• Fits GM LS3 Rectangle Port Engines.

• EFI Applications.

• This is designed for GM LS Engines with EFI only. Use AF6240-6005 for NON-EFI applications.

• This intake manifold does not work with factory OEM fuel rails and requires the use of Aeroflow Fuel Rail Kit included (AF6999-5000).

• Requires the use of 14mm short(33.60mm) fuel injectors (Sold Separately).

•- Intake manifold Flat style gasket (must use Fel Pro 1222-2 or 1222-3).

SKU AF6250-6001
Brand AEROFLOW
