The Accufab 90mm & 95mm are available polished or black anodized. The mm size is measured at the blade, not the inlet.

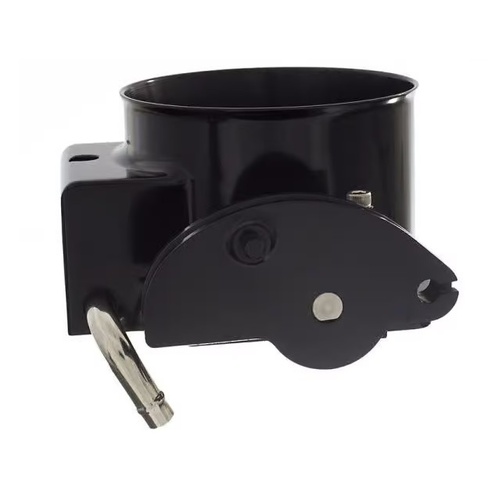

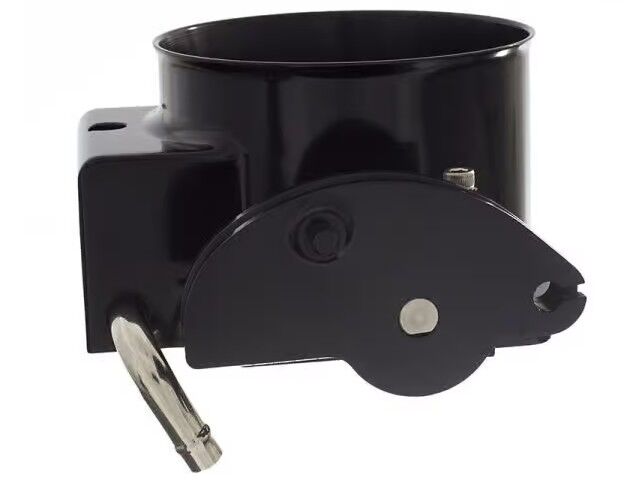

However, the Accufab 105mm throttle body is available in 3 styles. Standard, V-BAND or MAX version. All 105mm styles are available polished or anodized black.

The 105mm size is measured at the blade, not the inlet.  The 105mm throttle body inlet requires 4.5″ tubing. Depending on which throttle body version wanted, a standard rubber hose & hose clamp, V-band or Clamshell clamp is required.  The V-Band & Max versions require an aluminum weld ferrule to weld on your 4.5″ aluminum tubing. All parts sold separately.

All use late GM electronics, sold separately.

Better Air Flow for More Power: This upgrade will greatly improve your LS1’s throttle response and horsepower. It’s the perfect starting point for future modifications.

Exceptional Quality: Accufab’s quality is second to none! This throttle body is CNC machined from 6061-T6 billet aluminum and the exterior is polished to an eye-catching finish. The shafts are also CNC machined from stainless for durability and quality, with brass blades and the highest quality bushings, bearings and screws. Only the best components are used for unparalleled reliability and performance. Manufactured in the USA.

Application: This throttle body is specifically designed as a direct bolt on for use on the Camaro LS1’s FAST intake manifold bolt pattern.

• Accessories Included: Each throttle body includes mounting screws only.
