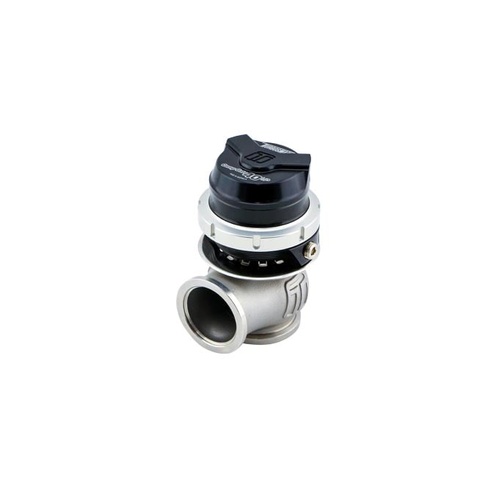

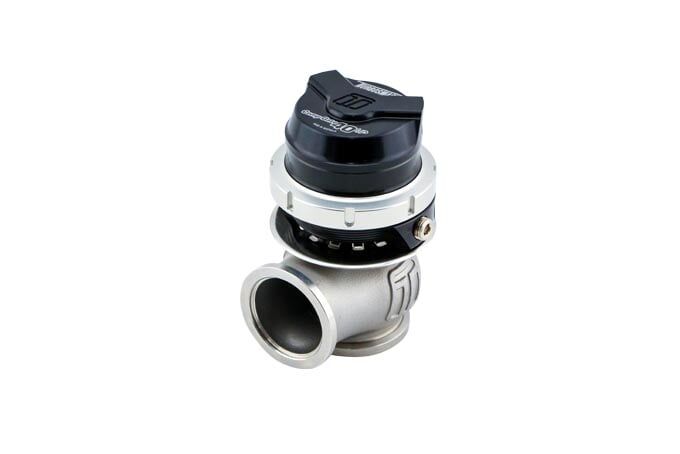

The GenV CompGate40 HP external wastegate is a Motorsport-proven, cost-effective 40mm external wastegate with base spring pressure options of up to 50 psi! Add some reference signal manipulation, and you have a serious boost! The GenV provides extensive user configurability, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.

The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision and 1/8? NPT reference ports.

Available In
38mm GenV UltraGate38HP - TS-0551-1312
40mm GenV CompGate40HP - TS-0552-1312
45mm GenV Hyperflow45HP - TS-0553-1312

Features
HP Actuator - Up to 50psi Base Pressure
Class Leading Thermal Performance
Class Leading CFD and Bench-Validated Flow Performance
Class Leading Fatigue Resistance
Optional Actuator Liquid Cooling
Rotatable / Clockable Actuator Housing
Nitronic 60 Valve Guide and High Temp 347 SS Body
17-7 PH Stainless Steel Springs
Strap Type V-band clamps

SKU TS-0552-1312
Barcode # 9.33E+12
Brand TURBOSMART
Shipping Weight 2.0000kg
Shipping Width 0.300m
Shipping Height 0.300m
Shipping Length 0.300m
