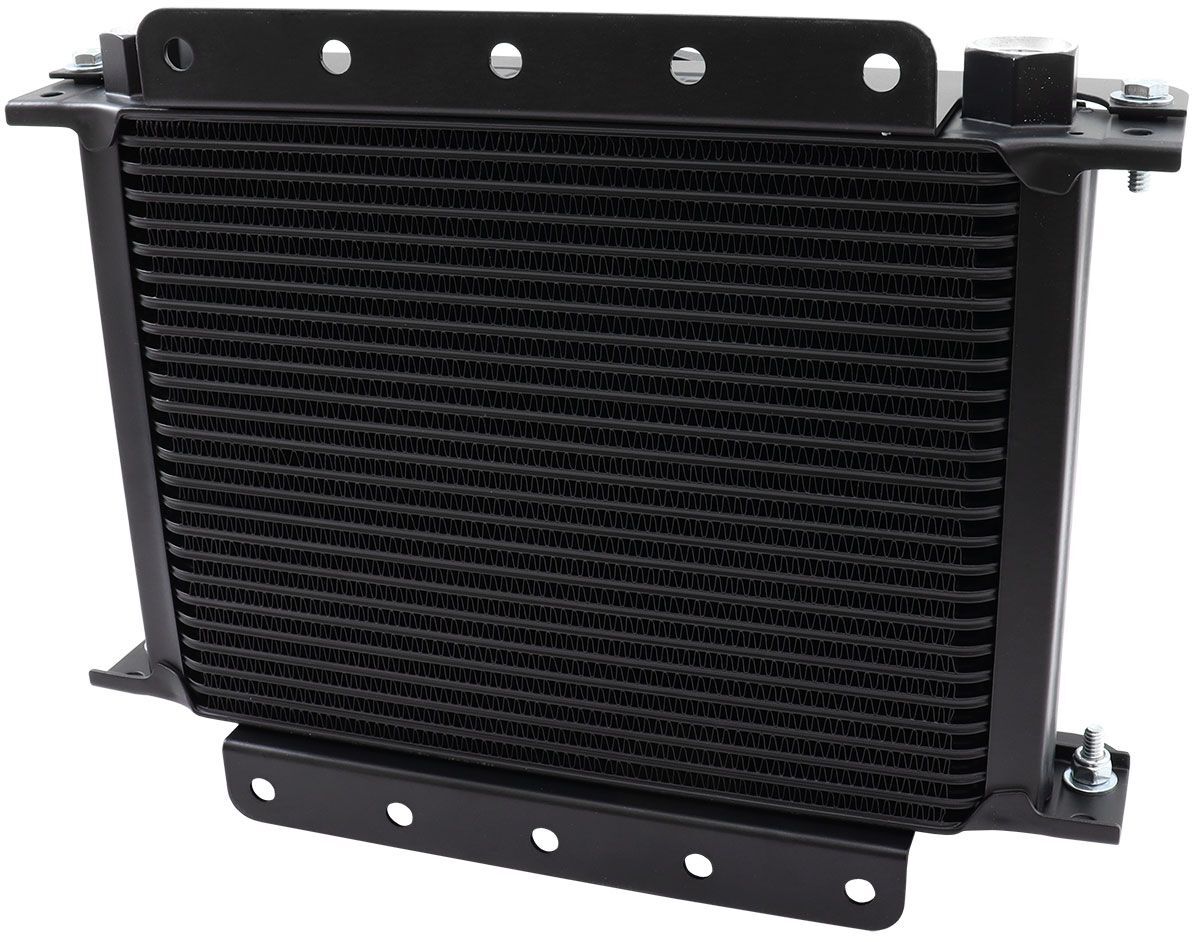

Aeroflow offers a tremendous selection of the industry's highest quality coolers in a wide range of applications and profiles. These stack plate (modular style) coolers are fully brazed on all contact surfaces inside and out, furthermore they have a brazed seam that withstands vibrations and pulsations in the toughest environment. Any performance vehicle can benefit from an Aeroflow Cooler. Motor homes, tow vehicles, passenger cars and even motorcycles can realize extended engine and/or transmission efficiency and life.

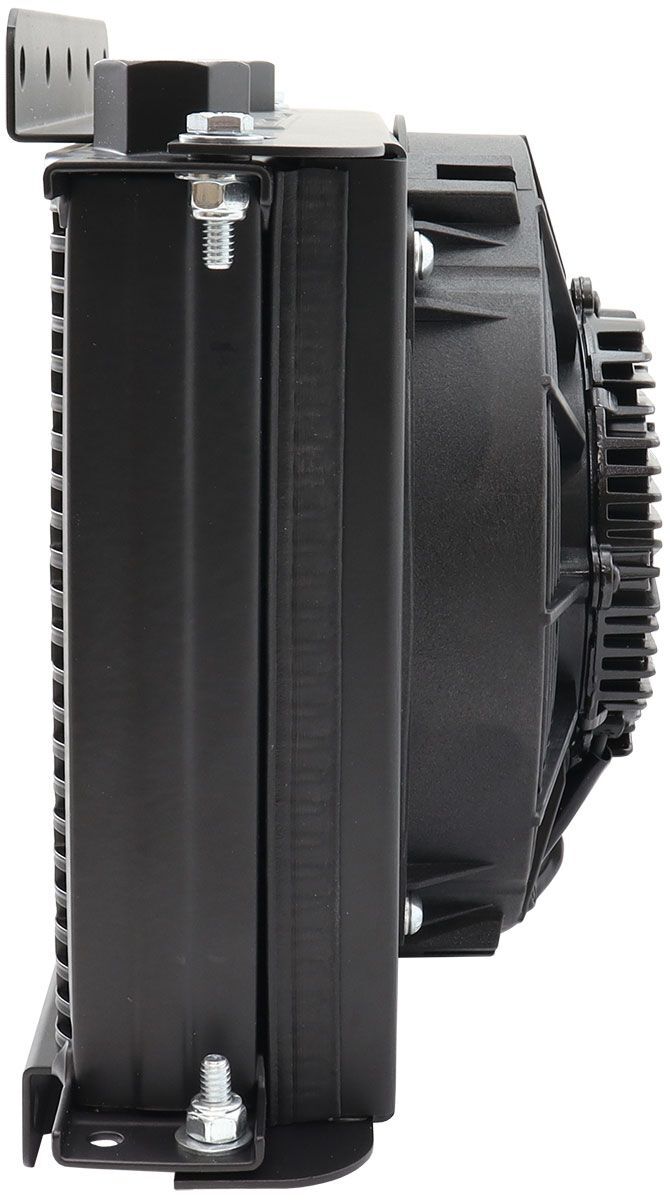

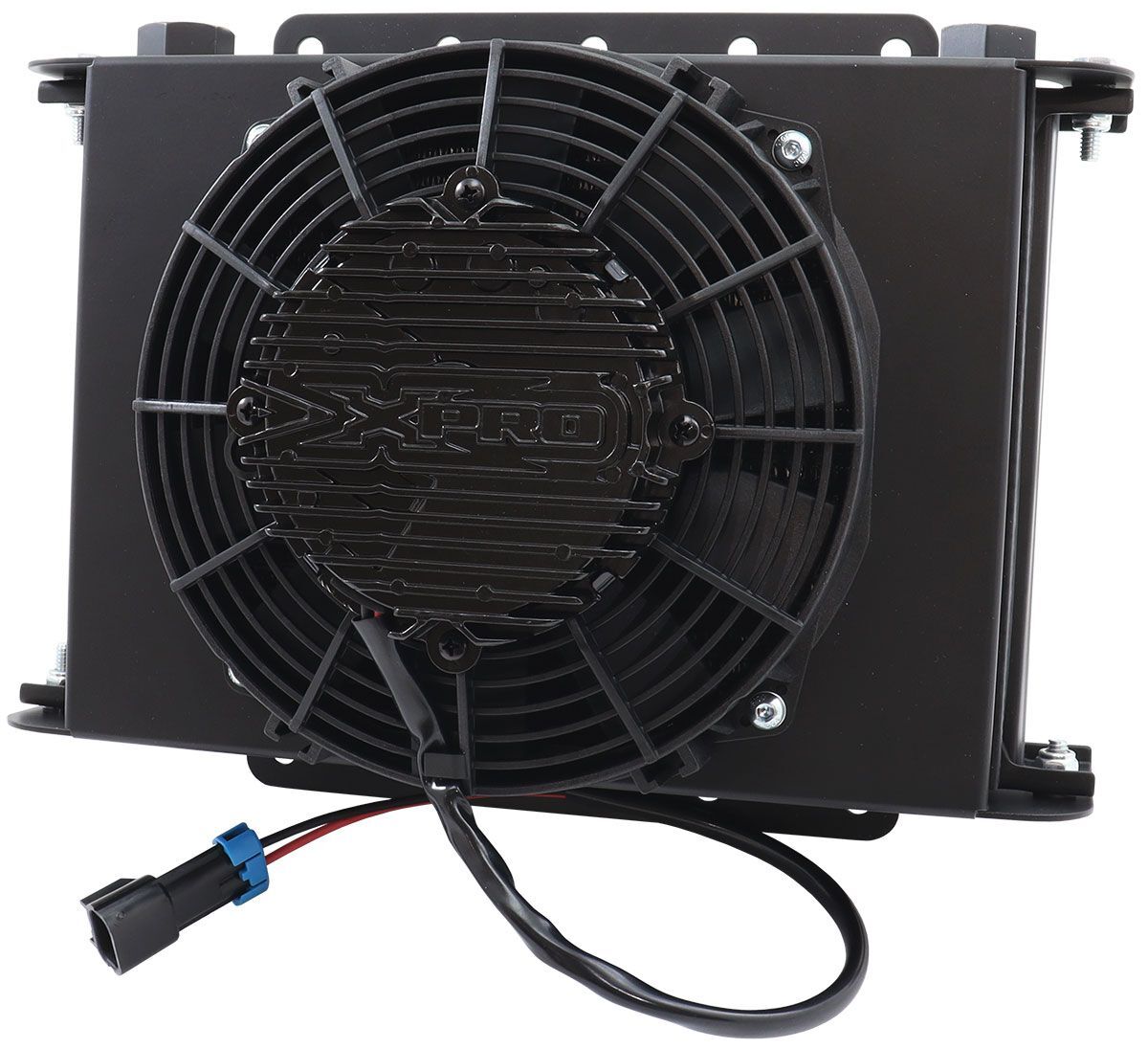

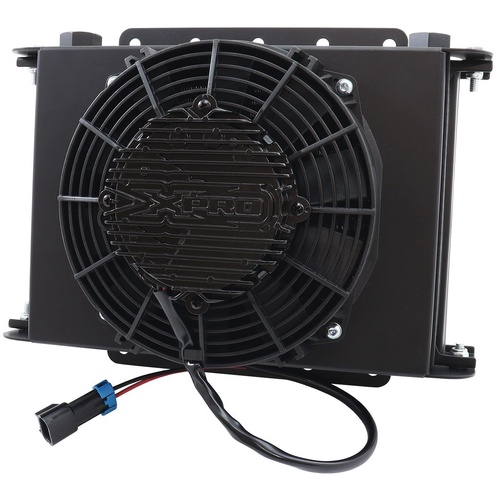

To enhance your engine oil or automatic transmission cooling capabilities we have added an brushless electric fan and shroud combination to the modular oil cooler. Featuring our powerful 7-1/2” puller straight blade brushless electric fan to keep your oil cool. The aluminium fan shroud which mounts over the top of the oil cooler to provide a stronger mounting point and no need for an external bracket to be purchased or fabricated. The fan shroud itself is sealed with rubber trims to ensure the airflow from the fan is directly to the cooler itself.



Technical Specifications:

Oil Cooler Rows: 25
Oil Cooler Depth: 51mm
Oil Cooler Length: 330mm
Oil Cooler Height: 193mm
Overall Height: 255mm
Overall Depth: 150mm
Brushless Electric Fan: 7-1/2" Diameter
Brushless Electric Fan Height: 62mm
Connections: -10 Female ORB Threads.
BTU Rating: 45000BTU /hour

  • For use in engines, transmissions,hydraulic systems, etc.
  • Max working pressure is 10 Bar (1 MPa or 145 PSI)
  • Burst pressure is 25 Bar (2.5 MPa62 PSI)
SKU AF72-4125BL
Brand AEROFLOW
Shipping Weight 5.0000kg
Shipping Width 0.400m
Shipping Height 0.200m
Shipping Length 0.300m
Shipping Cubic 0.024000000m3
